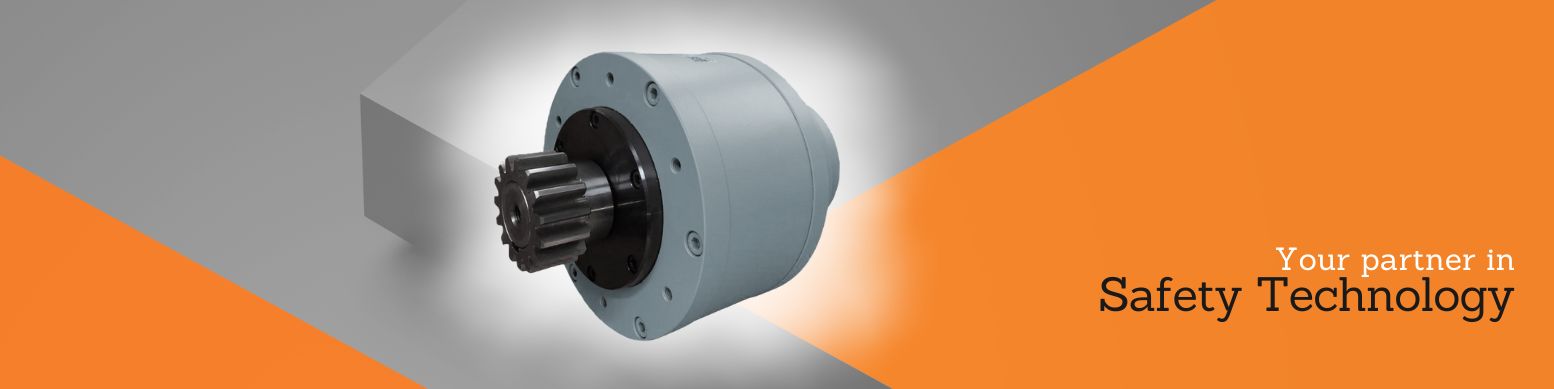

FPC-1000 – Safety Brake

The EIDE FPC-1000 safety brake provides 100% automatic and mechanical activation, ensuring maximum protection in lifting and transportation applications.

FPC-1000 – Safety Brake

The EIDE FPC-1000 safety brake provides 100% automatic and mechanical activation, ensuring maximum protection in lifting and transportation applications. With a maximum torque of 1250 Nm and an adjustable regulation speed between 150 and 400 rpm, it is a reliable and certified solution that complies with the strictest European safety standards.

Technical Data

  • Product name: Safety Brake FPC-1000
  • Maximum torque: 1250 Nm
  • Regulation speed: from 150 rpm to 400 rpm
  • Standards compliance: EN-12158, EN-12159, EN-1495, EN-81, Lift Directive 2014/33/EU
  • Mounting compatibility: Gearbox IEC 132
  • Activation: Fully automatic and mechanical, no external power required
  • Microswitch integrated: Indicates whether the brake has been activated

Application Use-Cases

  • Lifting platforms: Certified safety for working at height.
  • Elevators and hoists: Provides additional protection in case of transmission failure.
  • Construction and maintenance equipment: Ensures immediate stopping in critical operations.

Why the FPC-1000?

The FPC-1000 combines robust performance, regulatory compliance, and reliability. Its compact design allows easy installation in standard gearboxes (IEC 132), while the built-in microswitch provides additional monitoring of activation status. With EIDE, you gain a certified safety brake that protects people, equipment, and facilities in critical situations.

Why EIDE?

With 70+ years of experience in power transmission, EIDE offers customisable safety brakes that meet the most demanding industrial standards. Each product undergoes strict quality control, ensuring long-term reliability and reduced downtime.

Frequently Asked Questions (FAQ)

Q: Does the braking torque depend on the activation speed?
A: No. The braking torque regulation is independent of the speed adjustment.

Q: Does the brake require electrical power to activate?
A: No. The FPC-1000 activates fully mechanically and automatically.

Q: Which European standards does the brake comply with?
A: The FPC-500 complies with EN-12158, EN-12159, EN-1495, EN-81-7 and the Lift Directive 2014/33/EU.

Q: My application is very slow. Can you set the brake above 150 rpm?
A: No, the brake is a mechanical system that requires a minimum of 150 rpm to trigger. You can use a gearbox to increase the input speed while reducing the torque.

Q: Where can it be installed?
A: It can be mounted directly to the machine or on standard IEC 132 gearboxes.

Looking for a certified safety brake for lifting and transport applications?  Contact EIDE to receive technical support and request a customised solution.
